NISSHINBO


CARBODILITE

Hydrolysis stabilizer for polyesters including Bio-plastics

CARBODILITE thermoplastic powder type contains carbodiimide group [-N=C=N-]. It improves anti-hydrolysis property for various types of polyester resin including Bio-plastics.

Hydrolysis stabilizer for polyesters including Bio-plastics

Characteristic

  • Remarkable improvement of anti-hydrolysis property
  • Less pyrolysis gas emission and irritating smell during melt molding process
  • Good weatherability

Properties

Grade HMV-15CA
Appearance Powder
Ave.Diameter ≦1000µm
Softening point* 158°F/70°C
5% weight loss temperature* 626°F/330°C
Hue : YI* (Yellow Index) JIS K7103 11
NCO% 0%

*Standard Value

Suitable Polymers

  • PLA (Polylactic acid)
  • PBS (Polybutylene succinate)
  • PHA (Polyhydroxy alkanoic acid)
  • Starch-based resin
  • PET (Recycled PET, Bio PET)
  • PBT (Polybutylene terephthalate)
  • Polyester elastomer

All other polymers containing ester groups

Application Examples

  • Automotive interior parts
  • Chassis/ coverings of home electrical appliance
  • Building decorative board
  • Shopping bag
  • Agricultural film
  • Food container
  • Covering material of cable
  • Connector parts
  • Toy and Stationery

Page Top

Application Effects

  • Hydrolysis stabilizer for polyesters including Bio-plastics

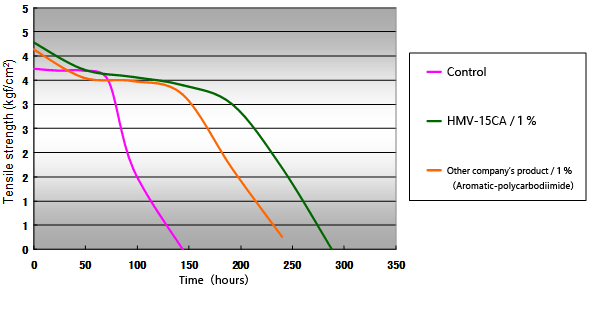

  • Hygrothermal Resistant Test

    Resin : PLA (Polylactic acid)
    Test condition : 176°F/80°C × 95%RH

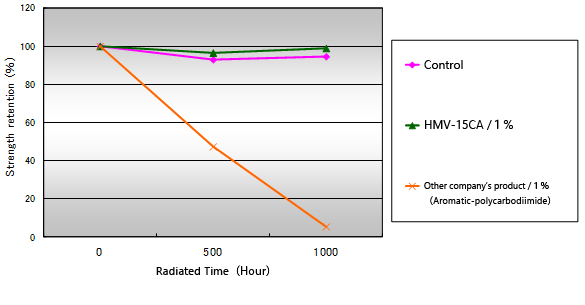

  • Weatherability Test

    Resin : PLA (Polylactic acid)
    Test condition : Xenon, B.P.T. 145°F/63°C, 50%RH, 100W/m2

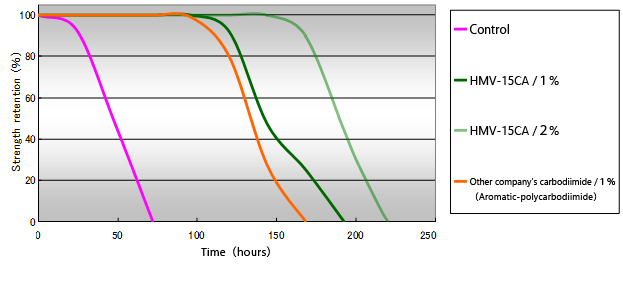

  • Hydrothermal Resistant Test

    Resin : PBS
    Test condition : 176°F/80°C × 95%RH

Page Top

Reaction of Carbodiimide

Carbodiimide group of CARBODILITE reacts with Carboxyl group as shown below.

Mechanism of hydrolysis stability

  • Reduction of initial acid value
  • Leaving non-reaction carbodiimide, and catch acid occurring over time

CARBODILITE is necessary to disperse in resin uniformly.
Recommend use after master batch and kneading by twin-screw extruder.

Regulation (Update Nov.2014)

TSCA (USA) Registered
REACH (EU) Polymer*
KECI (KOREA) Registered
IECSC (CHINA) Registered
ECN (TAIWAN) Registered
ENCS (JAPAN) Registered

*All raw materials are registered or pre-registered.
